This model is used for the transportaion of a variety of containers and bulk goods . Can be used for transportaion : One or two 20Ft containers.one 40Ft containers or one 45Ft containers.Iron floor or wooden floor can be selected according to different needs.The loading capacity range from 20 to 80 tons and are available in 2, 3 and 4 axles.
40Ft Container Flatbed Semi Trailer
Product Paraments:
Dimension :12500x2500x1580mm
Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm
Side beam :#16 channel steel
Loading capacity :45 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire:12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS

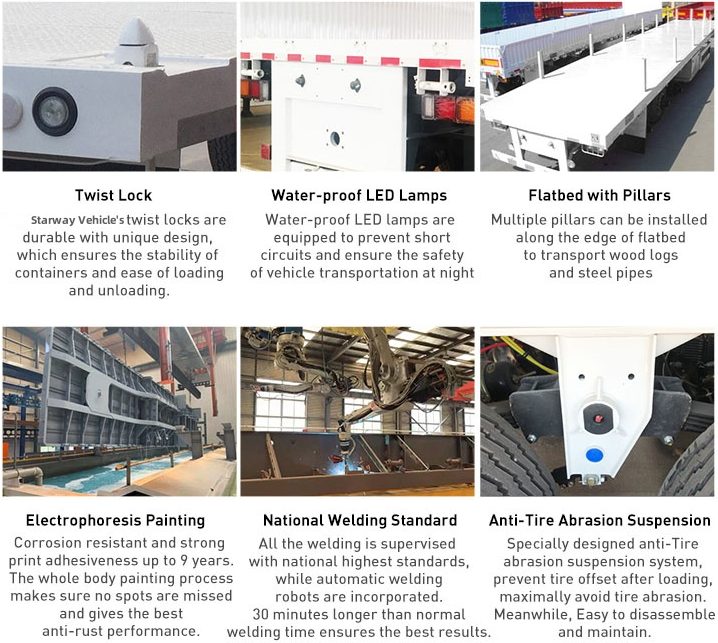

Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
Features:
- Simplified Maintenance: The straightforward structural design simplifies maintenance procedures, reducing downtime and labor costs.
- Reduced Operational Costs: The combination of extended lifespan, improved fuel efficiency, and lower maintenance requirements contributes to significant cost savings over the vehicle’s lifetime.
- Improved Safety Performance: The strong and durable construction enhances the vehicle’s safety performance, protecting both the driver and the cargo.
- Environmental Friendliness: Lower fuel consumption and reduced emissions make the vehicle more environmentally friendly.
